R12 AUXILLARY RELAY UNITS 12VDC

R12 Auxillary Relay Unit 12Vdc

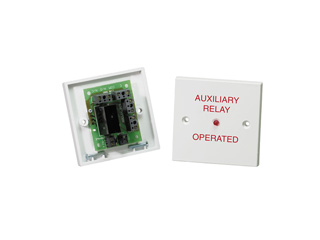

R12 Auxillary Relay Unit 12Vdc Opened
PRODUCT OVERVIEW

The R12 relay is intended to switch addtional field devices via the two relay outputs supplied. An LED is mounted so that it remains visible during the relay operation.

The supply voltage to the relay coil may be continued through the device via the additional terminals supplied. Each device is reverse polarity protected.

FEATURES
  • PCB version for mounting inside PSU’s, panels, etc.
  • Self contained version in a metal enclosure
  • Single gang plate version has ‘Auxiliary Relay Operated’ text
  • Custom legend or other language versions on request
TECHNICAL
Type PCB Surface mount
Voltage range (Vdc) 9 - 18 USA
Nom. current consumption (mA) 44
Relay contact rating 230Vac 5A
Coil impedance (?) 275
Protection rating n/a IP43
Boxed weight (kg) 0.051 0.15
Colours available n/a White
ITEM NUMBERS
  • “Auxiliary Relay Operated” text, single gang, surface : 503-004
  • PCB only, supplied with 4 adhesive feet : 503-005
DOWNLOADS
Product Data Sheet
