ISOLATOR SWITCHES
PRODUCT OVERVIEW
Our range of Fire Alarm Mains Isolator Switches provides a safe means to isolate the mains voltage to the fire alarm system and to ensure compliance with BS 5839-1: 2002. The isolator includes a neon indicator and ‘FIRE ALARM. DO NO SWITCH OFF’ text.

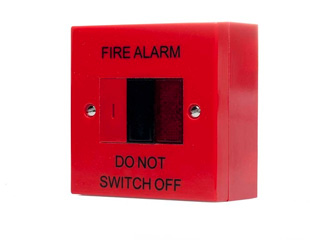

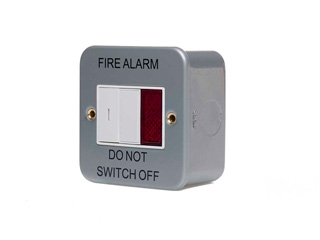

Supplied as either a plastic flush or surface mount or a metal clad surface mount version
TECHNICAL
| Part No. | MIS-M-SM | MIS-FM | MIS-SM |
|---|---|---|---|
| Nominal Operating Voltage | 230Vac | ||
| Switch Contact Rating | Double Pole - 250Vac, 13A | ||
| Enclosure Material | Metal | Polycarbonate | |
| Mounting | Surface | Flush | Surface |
| Key Type | Fishtail (supplied with the product) | ||
| Dimensions (w x h x d, mm) | 86 x 77.5 x 44 | 86 x 86 x 25 | 86 x 86 x 42 |
| Environmental Protection | Internal use only, not for outside applications | ||
| Weight (per unit packed) | 289g | 117g | 185g |
ITEM NUMBERS
- Mains isolator switch, metal clad, surface mount. : 513-002
- Mains isolator switch, surface mount. : 513-001
- Mains isolator switch, flush mount. : 513-003
DOWNLOADS
Product Data Sheet
