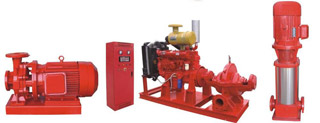

A fire pump is designed to increase the water pressure and provided with intake and discharge piping capable of furnishing ample volume and pressure for fire protection. The pump can be started manually but is usually arranged to start automatically upon drop in system pressure or the activation of a fire suppression system. Automatic starting requires a controller. Engines for operation the pump can be electric or diesel.
Fire pump are needed whenever pressure requirement of a fire protection system exceed the capabilities of the available water supply.
The Pump set comprises of the following units:
We offer a wide range of Fire Pumps and Pump accessories which is necessary to meet the system demand and conditions. The details of the accessories we offer are as shown below:

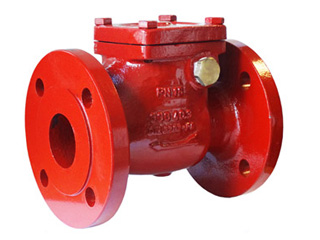

A non-return valve can be fitted to ensure that a medium flows through a pipe in the right direction, where pressure conditions may otherwise cause reversed flow. A non-return valve allows a medium to flow in only one direction.
When the pump starts the mechanism moves to open position and enables the liquid flow without any hindrance.
When the pump stops the mechanism takes the firm position against the metal seat because of its weight andbackpressure.
We offer a wide range of NRV with different size and capacity.

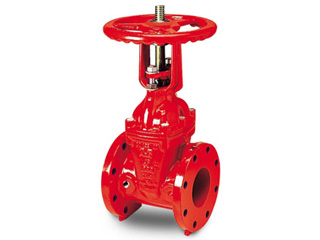

The gate valves are designed to stop, allow or throttle the flow of a process fluid. Gate valves, one of the original valve designs, are ideally suited for on/off, primarily liquid, service.
A gate valve functions by lifting a rectangular or circular gate out of the path of the fluid. When the valve is fully open, gate valves are full bore, meaning there is nothing to obstruct the flow because the gate and pipeline diameter have the same opening. This bore diameter also determines the valve size. An advantage of this full-bore design is very low friction loss, which saves energy and reduces total cost of ownership.

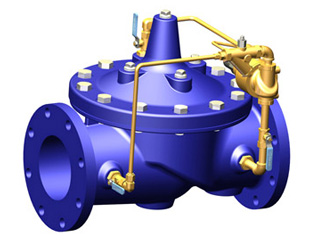

The Pressure Reducing valve reduces the pressure of the water that goes through it, and is used to obtain a regulated and constant value at its outlet. It is installed at the water mains. It protects the whole installation from problems due to excess pressure. The pressure reducing valves are completely automatic.
The Pressure reducing valve is mainly used in the application where a controlled pressure is required at its output. We offer a wide range of PRV at different pressure ratings and features.

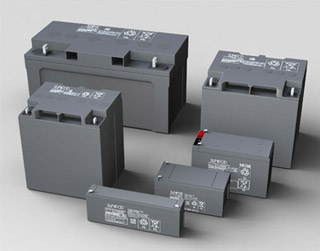

Diesel engine-driven fire pump assemblies are commonly installed for backup systems to electric-drive fire pumps, or where electrical power may be unreliable. The required power source for electrically starting diesel engine-driven fire pumps is storage batteries.
According to NFPA 20, Standard for the Installation of Stationary Pumps for Fire Protection, each diesel engine driving a fire pump must have at least two storage battery units for starting. We offer a wide range of Batteries from 50 Ah to 200 Ah.

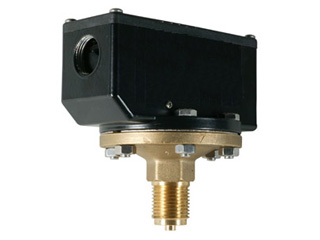

The controller is furnished with a pressure switch to control the start and the stop sequence of the fire pump.
The Pressure Switch with independent set and reset points which are adjustable throughout the entire operating range of the switch. The minimum deadband (minimum span between set and reset points) may be obtained at any point in the operating range of the switch. When the pressure drops below the setting, a snap action switch closes energizing the built in pump control relay and turns the pump on. When the pressure increases above the high setting, the snap action switch opens de-energizing the built in pump control relay and turns the pump off.
This control device is designed for use as an operating control in applications sensing air, water, or any fluid not harmful to the pressure connection, diaphragm or nitrile pressure-sealing O-ring.
