FIRE & EXTINGUISHING CONTROL

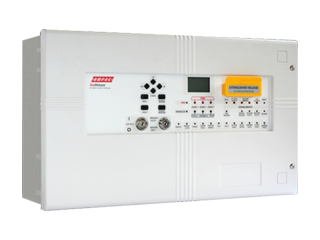

GasRelease is a compact conventional 3 zone fire control panel that includes additional circuitry for controlling the release of extinguishing agents into protected areas.

Fully compliant with EN12094-1, GasRelease is ideal for applications housing expensive, dangerous or irreplaceable items.

Supported by a wide range of ancillaries, GasRelease is a powerful partner for automatic fire suppression systems.

FEATURES

• Functions as a standard three zone fire panel with additional circuitry for controlling the release of fire-suppressing gas into protected areas
• Unique 128 x 64 pixel graphical display facilitates straightforward system programming
• Includes a pull-down front panel manual release button and two keyswitches for accessing the panel’s functions and toggling between auto/manual mode
• Three conventional sounder circuits (two x 1st stage, one x 2nd stage)
• Low quiescent current – less than 40mA
• Abort and hold inputs
• Time-stamped event log
• RS485 connections for up to eight flush or surface remote status units with their own LCD, manual release and mode (auto/manual) switches. Single gang economy status units (without an LCD) are also available.
• Extensive range of commissioning and engineering functions
• Ideal for use in computer rooms, telecommunication centres, archive stores, control rooms, generator rooms, museums, etc

SPECIFICATION

• Detection Zones : 3
• Detectors per Zone Circuit : 20 per zone (32 inc BGUs)
• Alarm Sounder Outputs : 3 (two 1st stage, one 2nd stage) each rate at 200mA at 24V dc
• Auxiliary Relays : 6 (Fire, Local Fire, Extract, 1st Stage, 2nd Stage, Fault) each rated at 1A at 30V dc
• Extinguishant Release Output : 21-28V dc rated at 1A for 5 mins
• Mains Supply : 230Vac, 50/60Hz @ 810mA max.
• Quiescent Current (mains fail) : 40mA
• Battery Space : 2 x 7A hr
• Dimensions (mm) : Back box: 439 x 276 H x 70 D (metal) Lid: 467 W x 293 H x 29 D (plastic)

For further details refer Product Data Sheet.

ITEM NUMBER

• GasRelease Panel : 2983-0304
